Anyone know where to find hyd seal kit for 20 series loader hyd

Forum › Forums › Help Me Find A Part › Anyone know where to find hyd seal kit for 20 series loader hyd

Viewing 4 reply threads
  • Author
    Posts
    • August 14, 2017 at 11:19 pm #47153
      NuJinma
      Participant
        • Offline

        Sent seal to Affordable who could not get seal kit for this cylinder. Part # UHS 40 50 6 It is for the lifting ram on my 20 series loader which was a ZL20 I believe. ( plate ripped off).

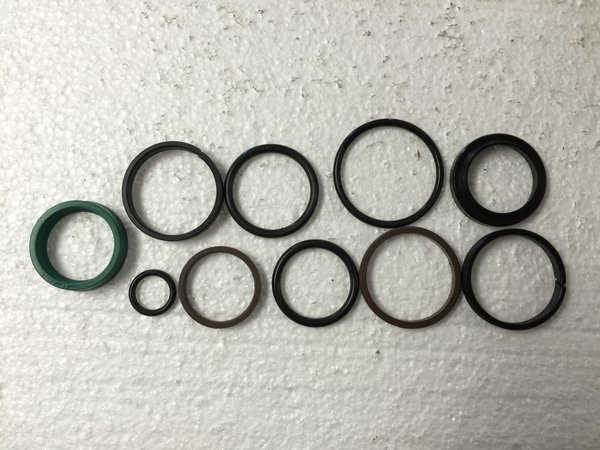

        I can get the seal, here: https://www.aliexpress.com/wholesale?catId=0&initiative_id=SB_20170814194617&SearchText=hydraulic+seals+40mm+50mm+6mm .I put new seals in it a few years ago. ( 2005 Jinma 254) I would prefer to replace all the o-rings and such also, it would be easier with a seal kit. I bought a seal kit for a steering cylinder as it was the correct id and OD, did not think about the 6 (width), as you can see in the pic it is way too thick. Anyone know of seal kits available?

        Attachments:
        You must be logged in to view attached files.
      • August 18, 2017 at 3:33 am #47158
        pedavies
        Participant
          • Offline

          There are kits available, just did one of mine with a kit from Asian Tractor Parts (Canada). Have to know if your piston is 25 or 28 mm when you order as I guess different years have different sizes.

          Paul

        • August 18, 2017 at 3:54 am #47159
          pedavies
          Participant
            • Offline
             Says Pump Seal kit but it is for the lift and curl cylinders
            ZL20 Pump Seal kit

            CALL FOR PRICE 1-866-765-0110

            This seal kit comes in two different sizes for the ZL20 loader

            28mm or 25mm shaft dimensions

            Measure and then call us at 1-866-765-0110 to place order



            Paul

          • August 18, 2017 at 1:49 pm #47160
            NuJinma
            Participant
              • Offline

              OK, will do, Thanks Pedavies.
              pete

            • September 13, 2017 at 12:53 am #47211
              NuJinma
              Participant
                • Offline

                Thank you, but somehow mine is different. I tried a couple of different places that both say will work but somehow i have different cylinders, my cylinders have a much greater diameter. I need 40 50 6 seal.
